DMX Interfaces
Which DMX Interface is best? Try us out now!
The dmx interface that is right for you will depend on your requirements. Use the feature comparison table below to help you choose.
| CABLE | D512 | REMOTE | RACK | NET512 | ||
|---|---|---|---|---|---|---|
| With a computer | ||||||
| Operating system | Windows | Win/Mac | Win/Mac | Win/Mac | Win/mac | |
| Communication | Usb | Usb | Usb | Usb | Ethernet | |
| Nb Channels | 100 | 512 dmx + 512 Artnet | 512 dmx + 512 Artnet | 512 dmx + 512 Artnet | 512 dmx | |
| Nb max interfaces | 1 | 6 | 6 | 6 | 6 | |
| Dmx input | | |||||
| Dmx optical isolation | | | | |||
| Stand-alone mode | ||||||
| Nb dmx channels | 0 | 512 | 512 | 512 | 512 | |
| Nb (dynamic) scenes | 1 | 18 | 16 | 9 | ||
| Nb zones | 1 | 4 | 4 | 4 | ||
| Nb flash buttons | 16 | |||||
| IR remote controller | | |||||
| Scheduler | | | | |||
| External contacts | 4 | |||||
| Internet | |
Interface « Cable »
This dmx interface opens 100 dmx channels to control your lighting equipment with our software, for a budget price.
- USB to DMX 512 cable
- LED for usb link
- max 100 dmx channels
- max 10 fixtures
- 3D rendering only without interface
Caution: this interface is not suitable for Mac computers.
Interface « D512 »
This dmx interface opens 512 dmx channels + 512 Artnet channels (or 1024 Artnet channels), with our software.
- metal casing
- LEDs for power and usb
- usb socket for computer link
- xlr 3 pins for dmx 512 output
- thermal protection on dmx ground
- one “dynamic” scene in standalone mode
Interface « Remote »
Without using a computer, this interface is able to play up to 18 scenes over 4 different zones. These scenes can be triggered by the dedicated (or universal) IR remote controller, with control of speed of the show. An internal date&time calendar can also trigger these scenes.
- metal casing
- LEDs for power, IR data and computer link
- IR sensor
- usb socket for computer link
- xlr 3 pins for dmx 512 output with optical isolation
- 2.5 jack socket for external power adaptor
- external/internal power switch
- cable locking system
- 3.5 jack for external IR sensor
- Mini-DIN for external contacts triggering
Interface « Rack »
Without a computer, this dmx interface is able to play up to 16 scenes over 4 different zones, triggered by the 16 flash buttons. An internal date&time calendar can also trigger these scenes.
- 19” rack mount one unit height
- LEDs for power, computer link, dmx input, flash buttons
- xlr 3 pins for dmx 512 output with optical isolation
- xlr 3 pins male for dmx input
- 2.5mm jack socket for external power adaptor (9-12V ; 300mA)
- switch to select external / internal power
- supplied with usb line and power adaptor

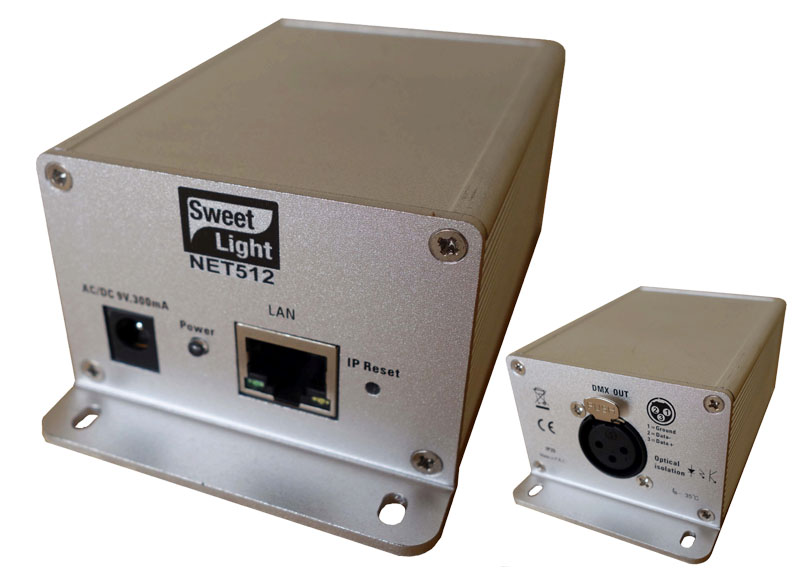

Interface « Net512 »
Without the need for a computer, the Net512 dmx interface is able to play up to 9 scenes over 4 different zones. These scenes can be triggered via an internet browser (Chrome, Safari, firefox, IE, …). An internal date&time calendar can also be used to trigger these scenes.
- metal casing
- LEDs for power and ethernet link
- ethernet socket for computer link
- xlr 3 pins for dmx 512 output with optical isolation
- 2.5 jack socket for external power adaptor
- supplied with ethernet line and power adaptor
